Power Chucks:

EB Manufacturing provides a wide range of unique Power Chucks for any applications required.

Self-Centering:

6’’– 18’’ Diameter
Available in 2-Jaw, 3-Jaw, 6-Jaw, & 2/3-Jaw

EB Manufacturing Self-Centering Chucks with cam lever gripping mechanism provides accurate gripping and centering of workpiece.

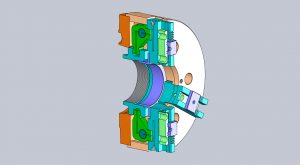

700-a11-ebm107-assy

Compensating:

6’’-18’’ diameter
Available In 2-Jaw or 3-Jaw

EB Manufacturing Compensating Chucks provides 1/8” compensation per jaw, for holding irregular shaped workpieces between centers.

710-170-ebm106-assy

Custom:

6”-18” Diameter

EB Manufacturing designs and built to suit non standard applications per customer request.

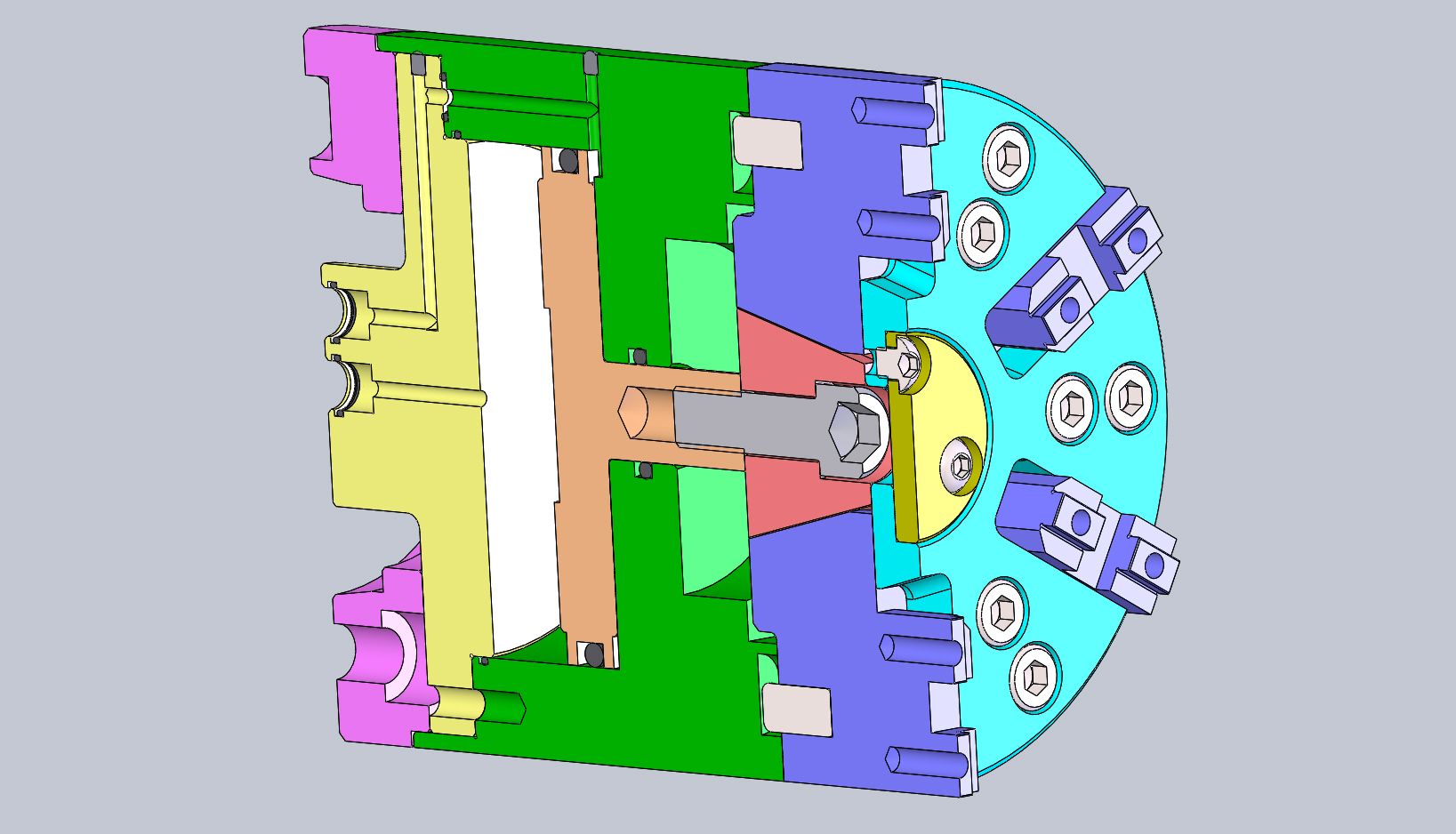

700-140-eb1182-chuck-assy

Draw Down:

6”-18” Diameter
Available In 2-Jaw & 3-Jaw

EB Manufacturing Draw Down Chucks are available in two types: wedge and lever operated. The wedge type simultaneously grips and seats the workpiece. The lever type first centers and then seats the workpiece and finally applies full grip force.

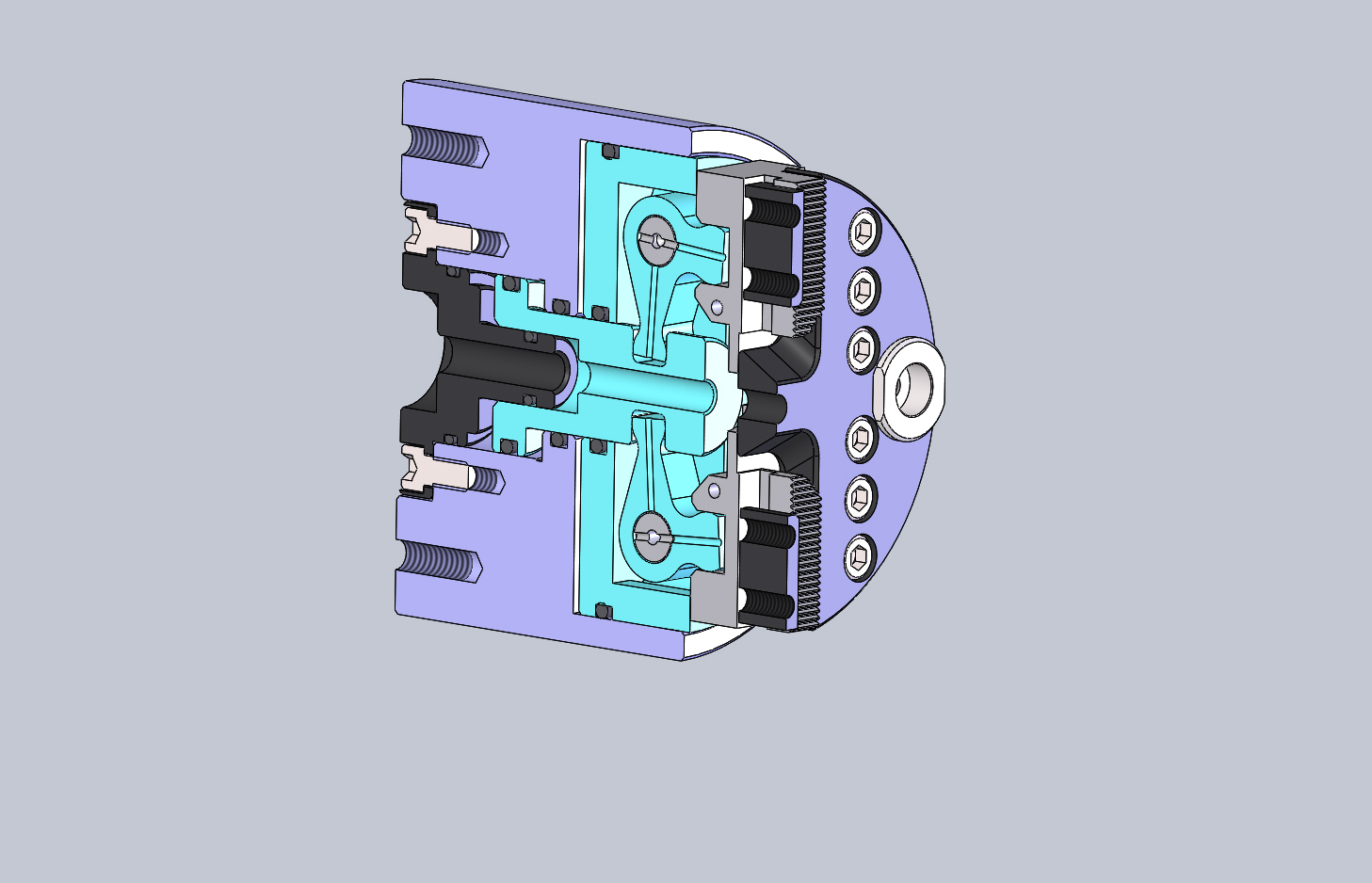

730-115mm-ebm171

Counter-Centrifugal:

6”-18” Diameter
Available In 2-Jaw & 3-Jaw

EB Manufacturing Counter Centrifugal Chucks uses a system to counter balance centrifugal force loss of the top jaws at higher speeds and secure the workpiece.

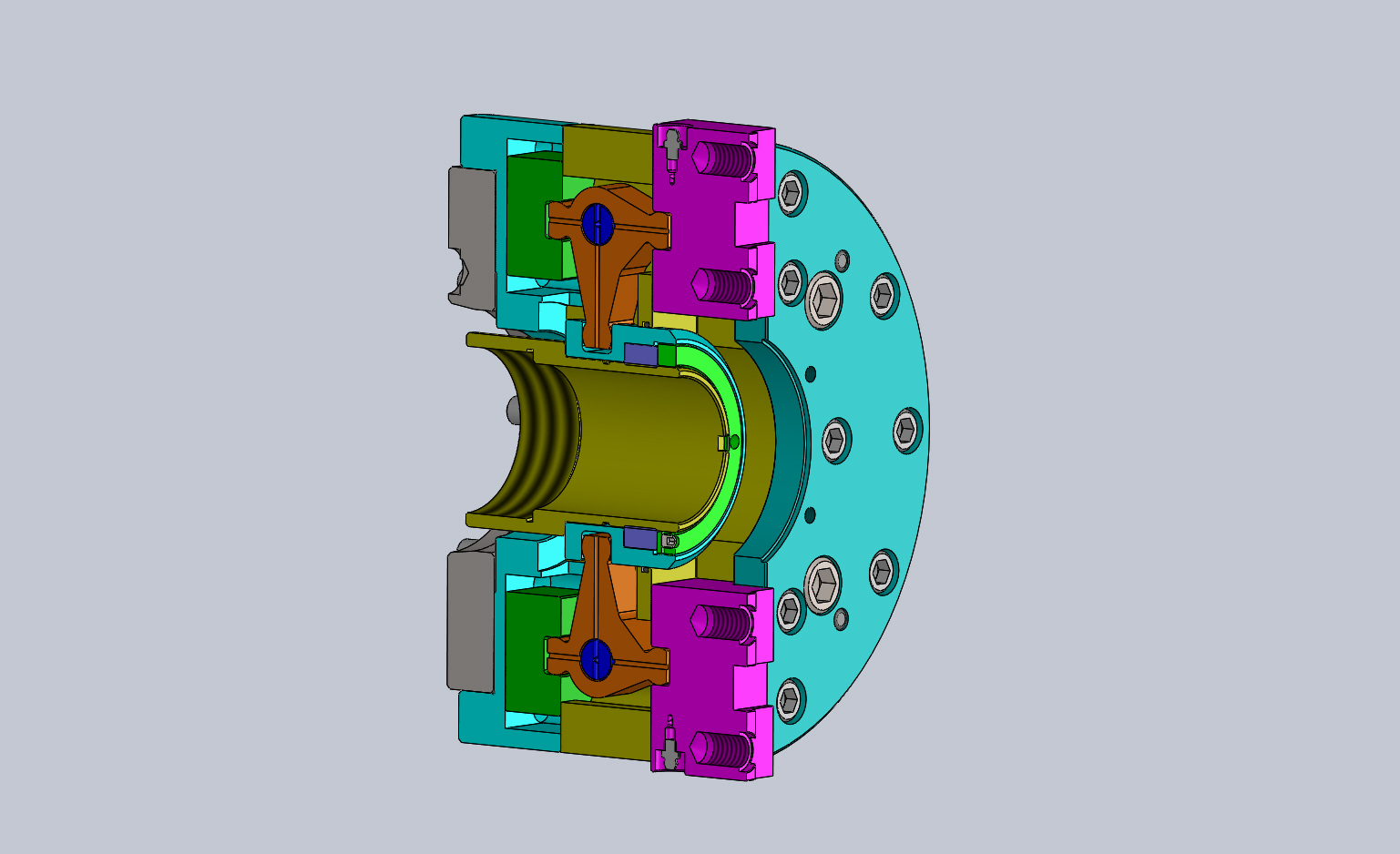

720-260go-ebm142

Call us today to discover more information on our power chucks and self-centering power chucks. Our company serves clients nationwide with personalized products for production.
