Flex-Ring Mandrels:

EB Manufacturing provides a wide range of unique custom designs of flex-Ring & Collet Mandrels for any applications required. Our customized options for mandrels include the following:

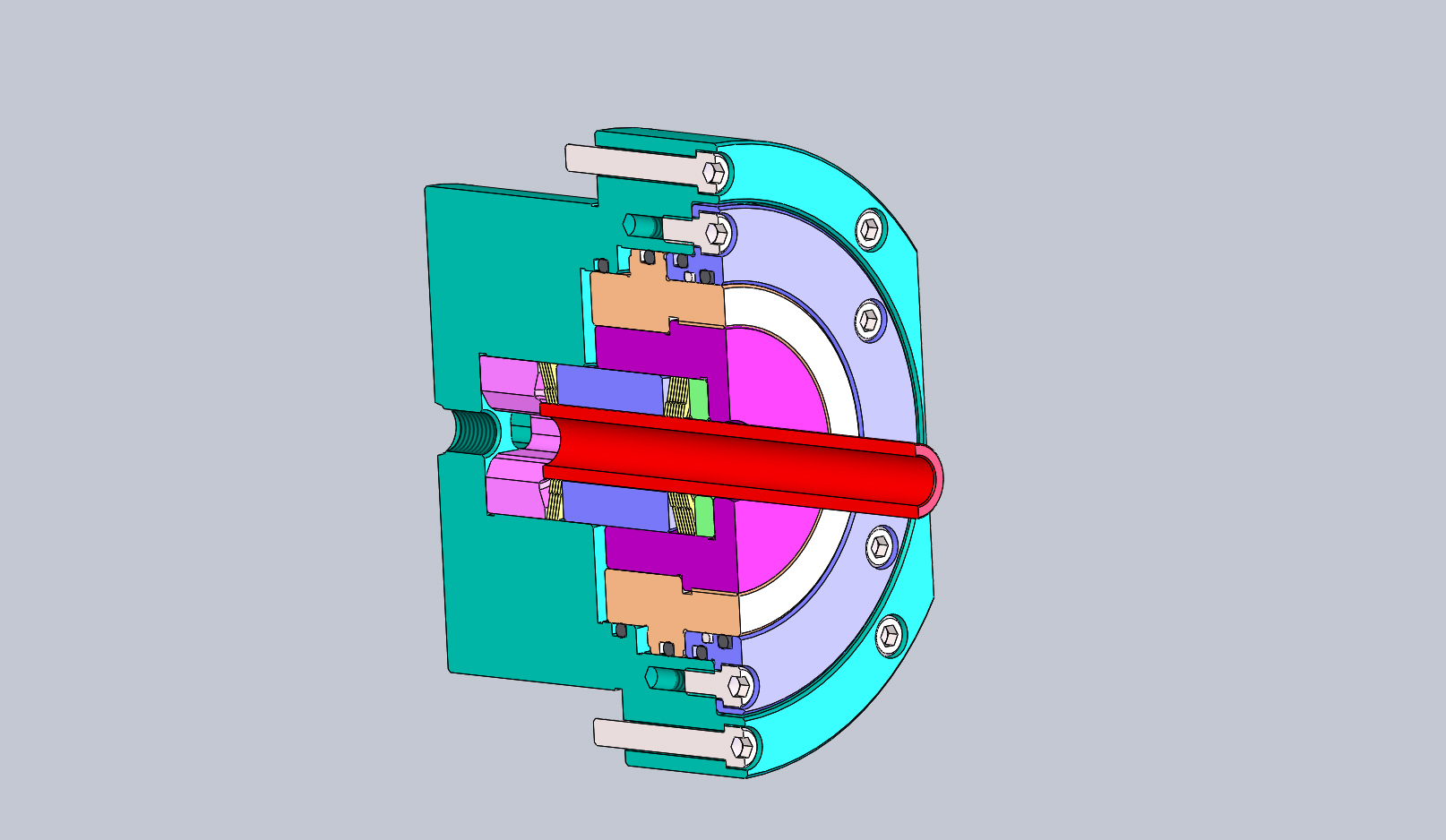

Flex-Ring OD-Grip:

Designed with multiple flex-rings to generate high clamping torque and positive pullback, gripping on the outside diameter of the workpiece, and positively locates against a workstop.

610-018-eb1519-mandrel-assy

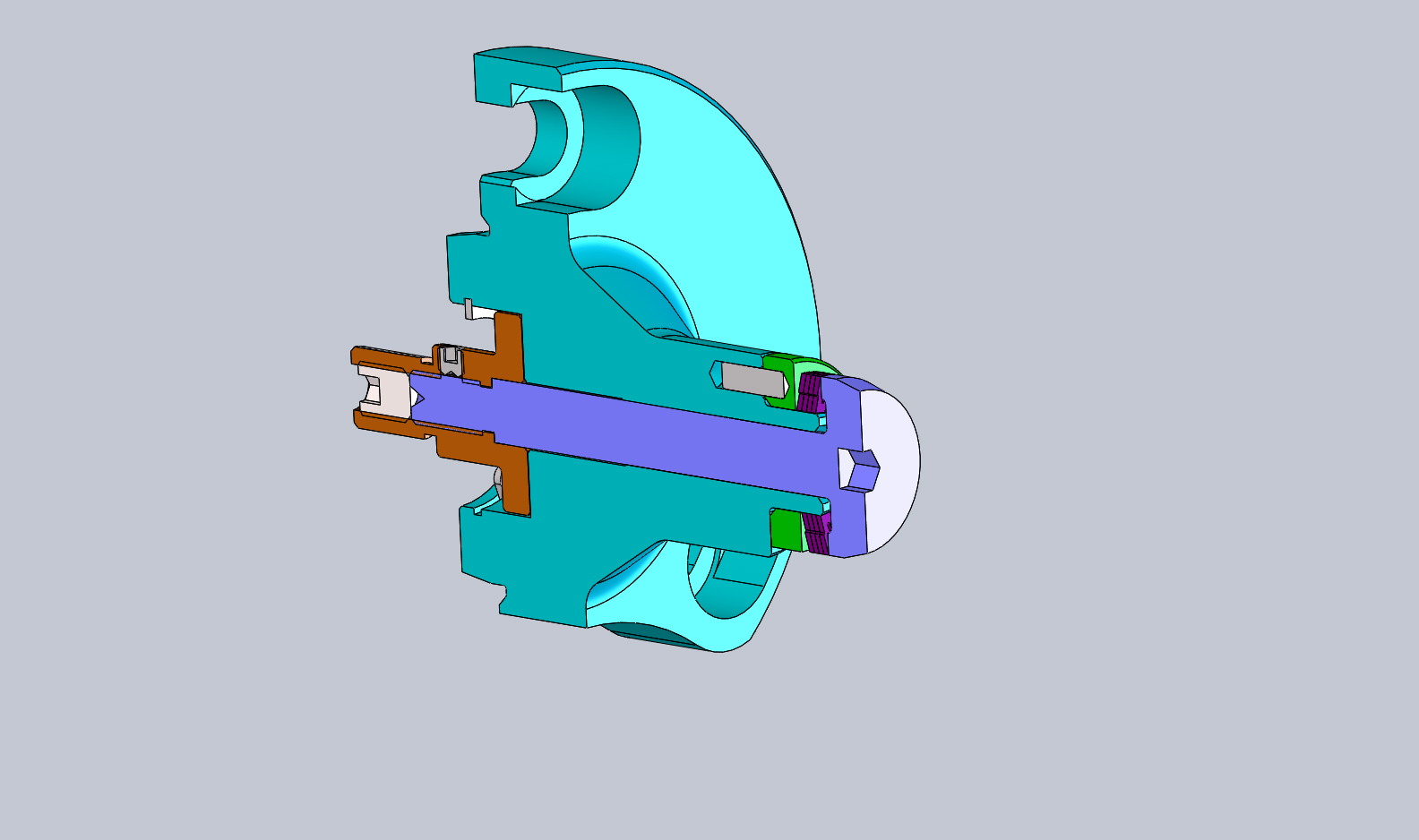

Flex-Ring ID-Grip:

Designed with multiple flex-rings to generate high clamping torque and positive pullback, gripping on the inside diameter of the workpiece, and positively locates against a workstop.

620-026-eb1544-assy

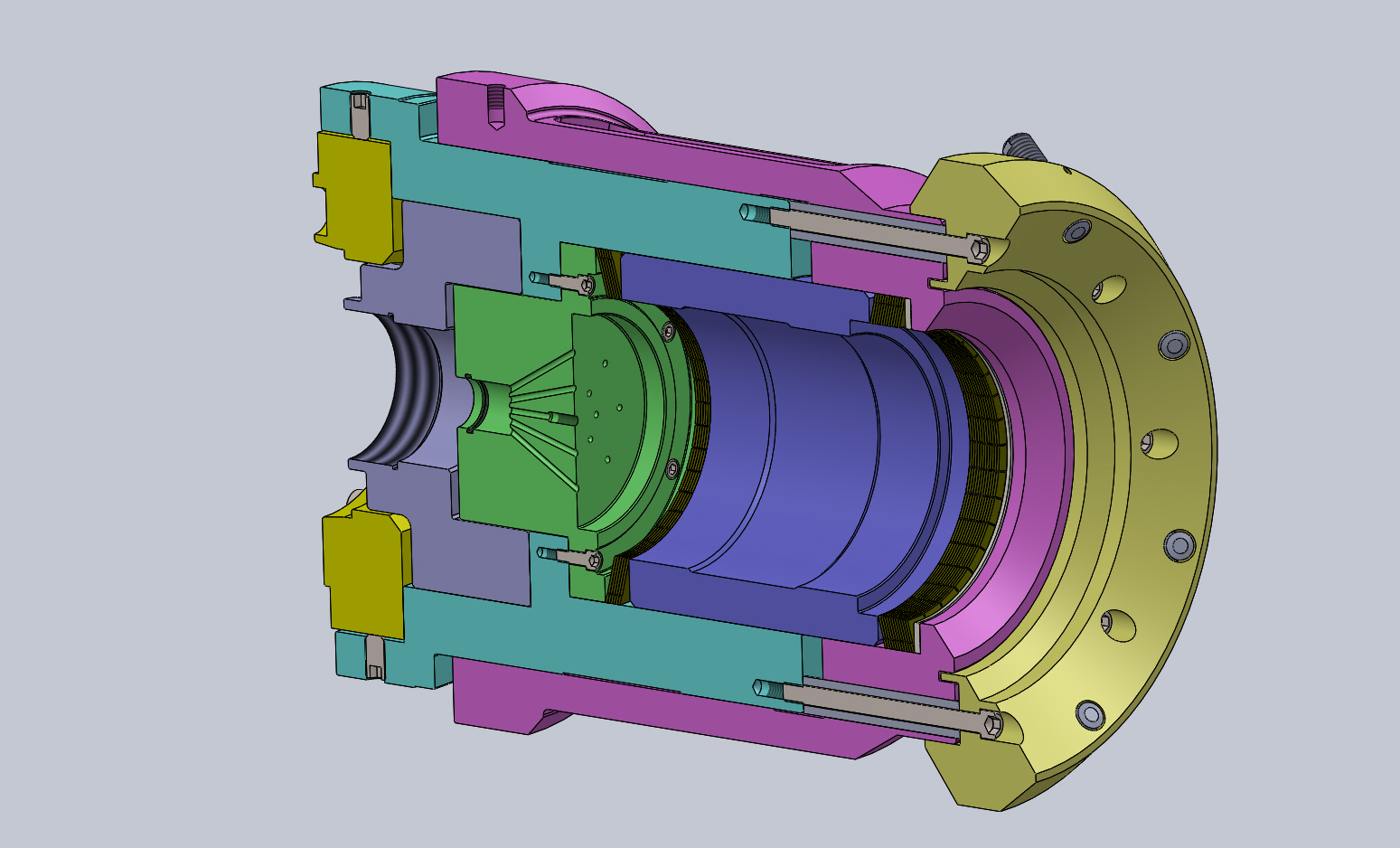

Flex-Ring Differential (OD or ID)  Grip:

Designed with two sets of multiple flex-rings to generate high clamping torque and positive pullback if necessary, gripping two areas on outside or inside diameter of workpiece to maintain centerline straightness and positively locate against a workstop. Mandrels can be mounted on any type of lathe or machining centers.

610-180mm-eb1909-assy

Flex-Ring Between Center Arbors:

Designed with two sets of multiple flex-rings to generate high clamping torque and positive pullback if necessary, gripping two areas on inside diameter of workpiece to maintain centerline straightness and positively locate against a workstop. Mandrels can be mounted on any type of OD-grinders with centers.

Flex-Ring Inspection Arbors:

Designed with two sets of multiple flex-rings to generate high clamping torque and positive pullback if necessary, gripping two areas on the inside diameter of the workpiece to maintain centerline straightness and positively locate against a workstop. Mandrels can be mounted on CMM between centers.

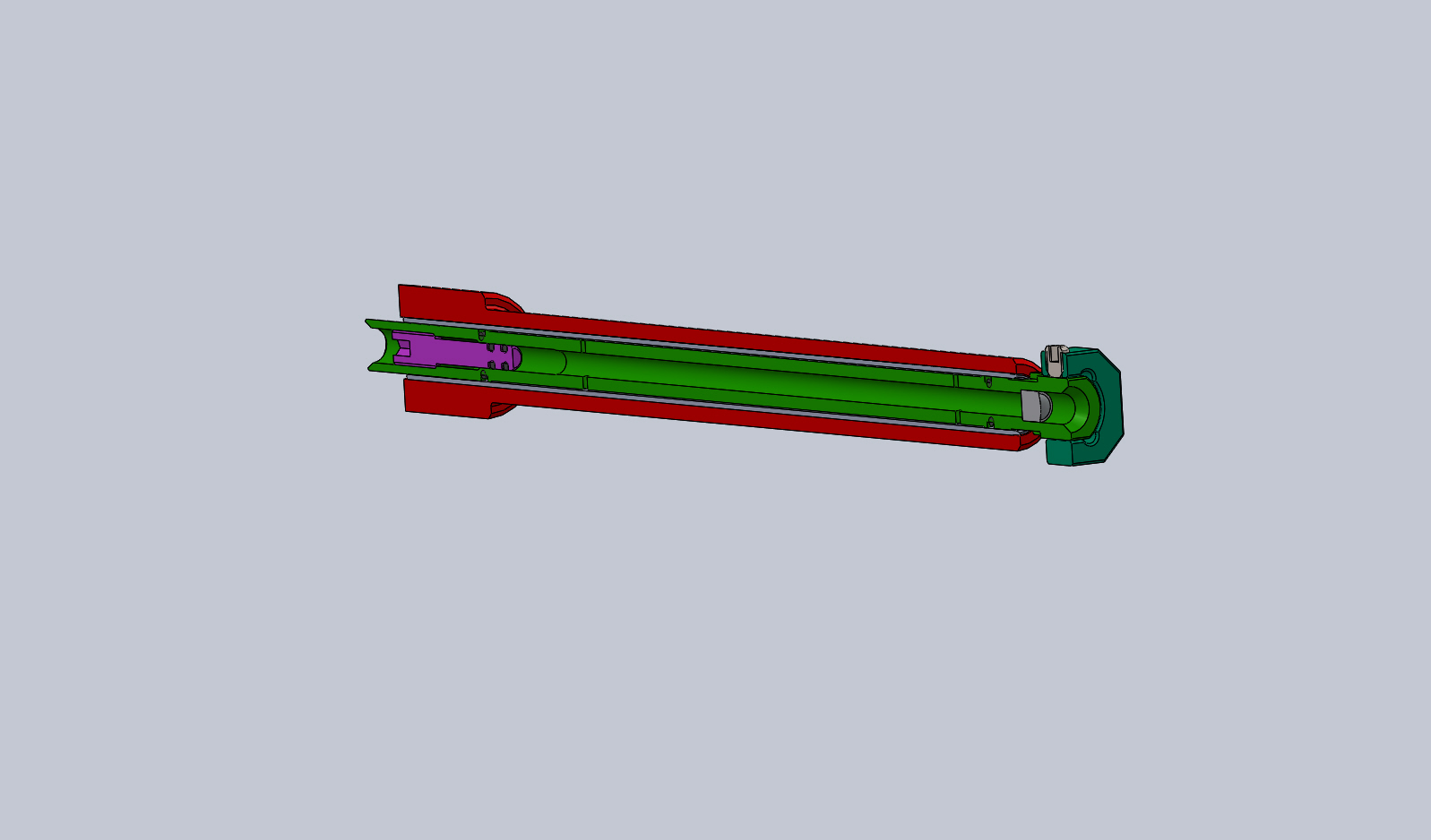

170-12mm-eb1721-assy

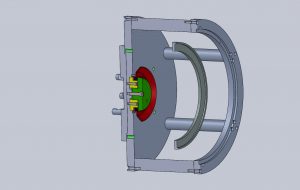

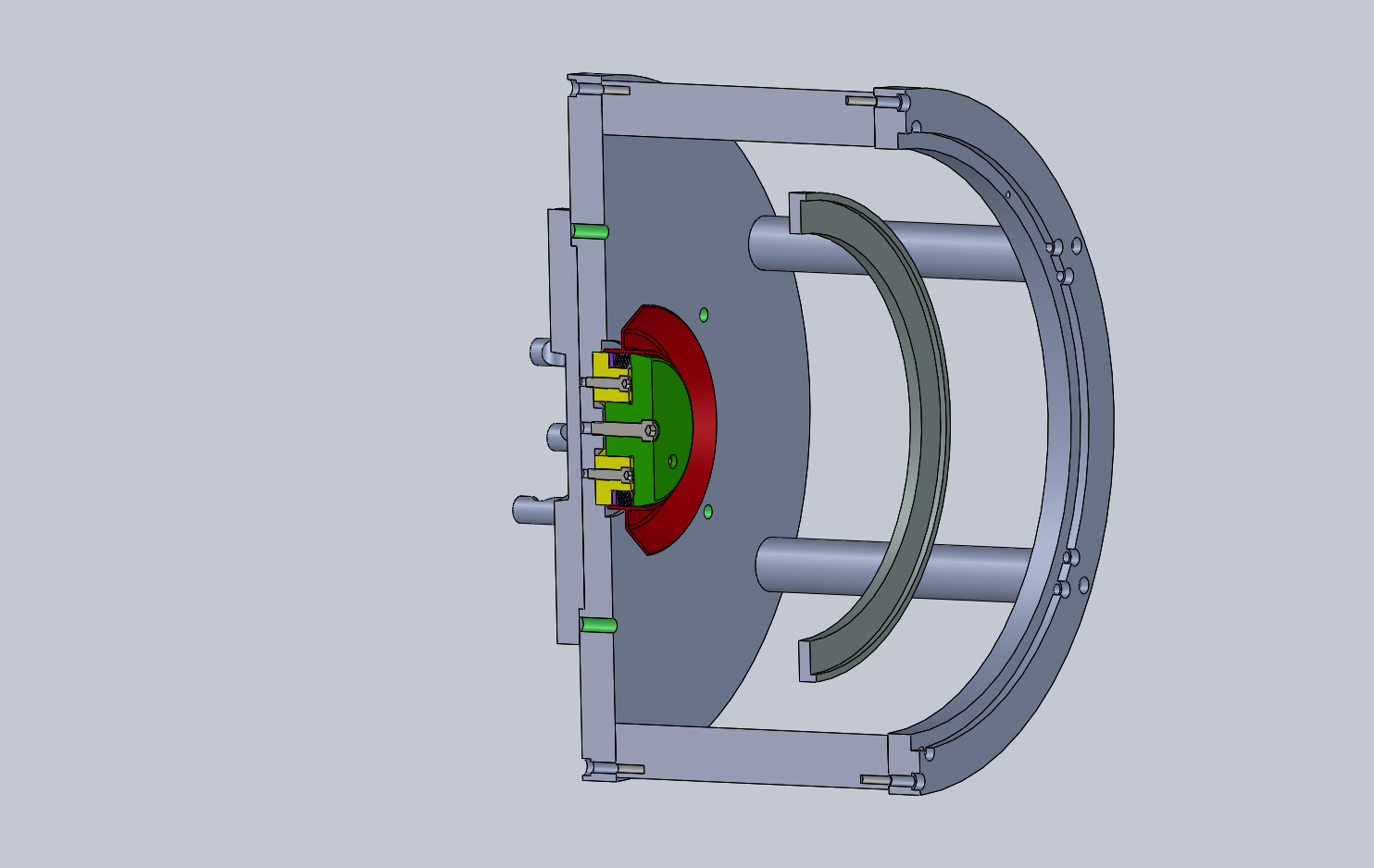

Flex-Ring Custom:

Special size and style of flex-ring mandrels required gripping on the inside or outside diameter of the workpiece, and positively locate against a workstop. Flex-ring mandrels can be mounted on any type of lathe or machining centers.

620-028mm-eb1795-flexring-fixture-assy

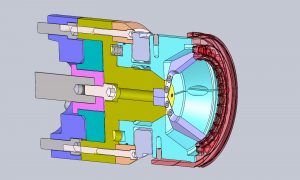

Collet Expanding Mandrels:

EB Manufacturing Collet Expanding Mandrels are designed to grip workpiece with positive pullback. The options for these include the following:

175-a8-eb1627-assy

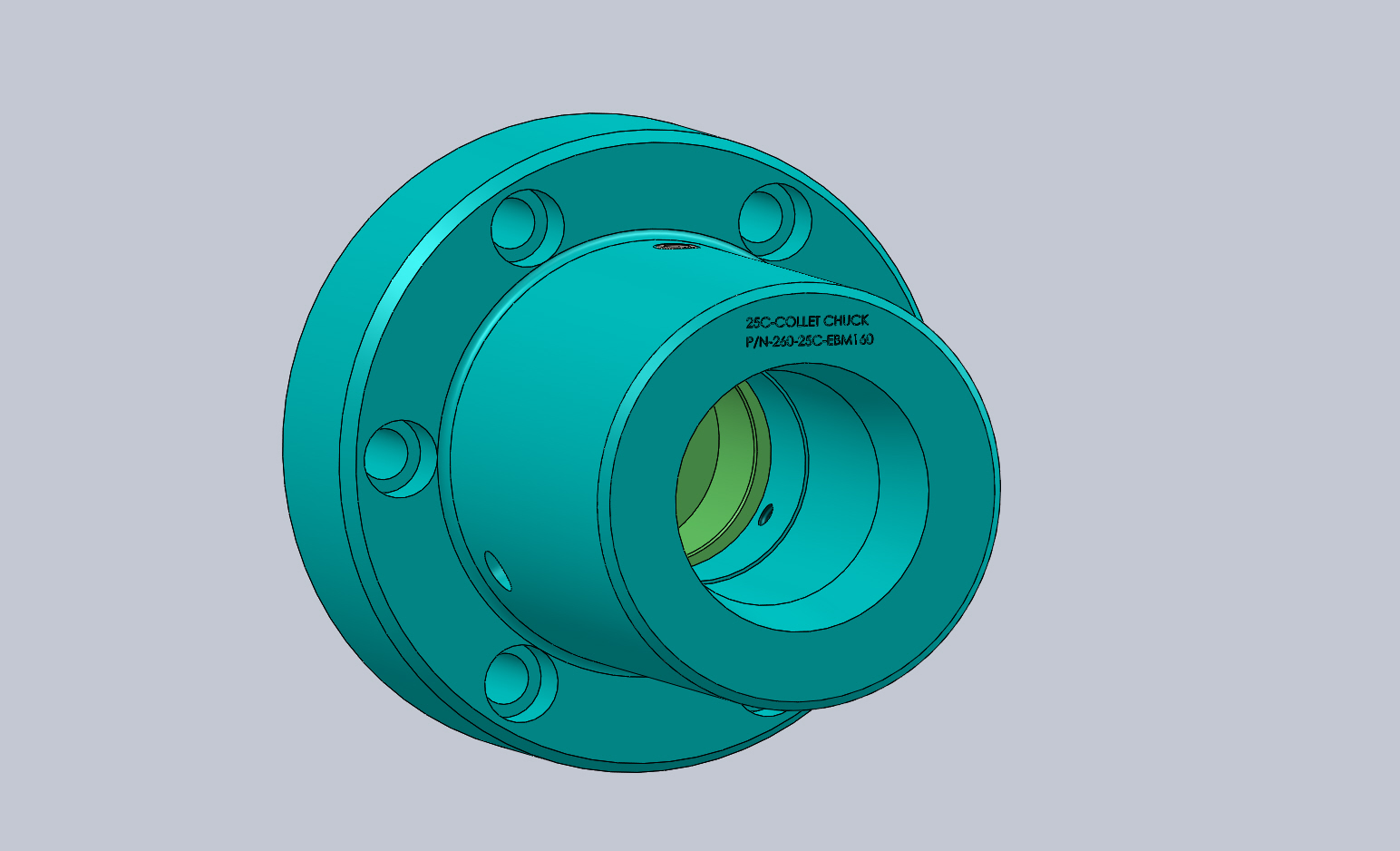

Collet Pullback:

Taper Collet Expanding Mandrels are designed with positive pullback, gripping on the inside diameter of the workpiece, and positively locate against a workstop.

260-25c-ebm160-assy

Collet Differential:

Differential Collet Expanding Mandrel are designed with special taper collet and positive pullback and gripping on two areas of inside diameter of workpiece to maintain centerline straightness and positively locate against a workstop.

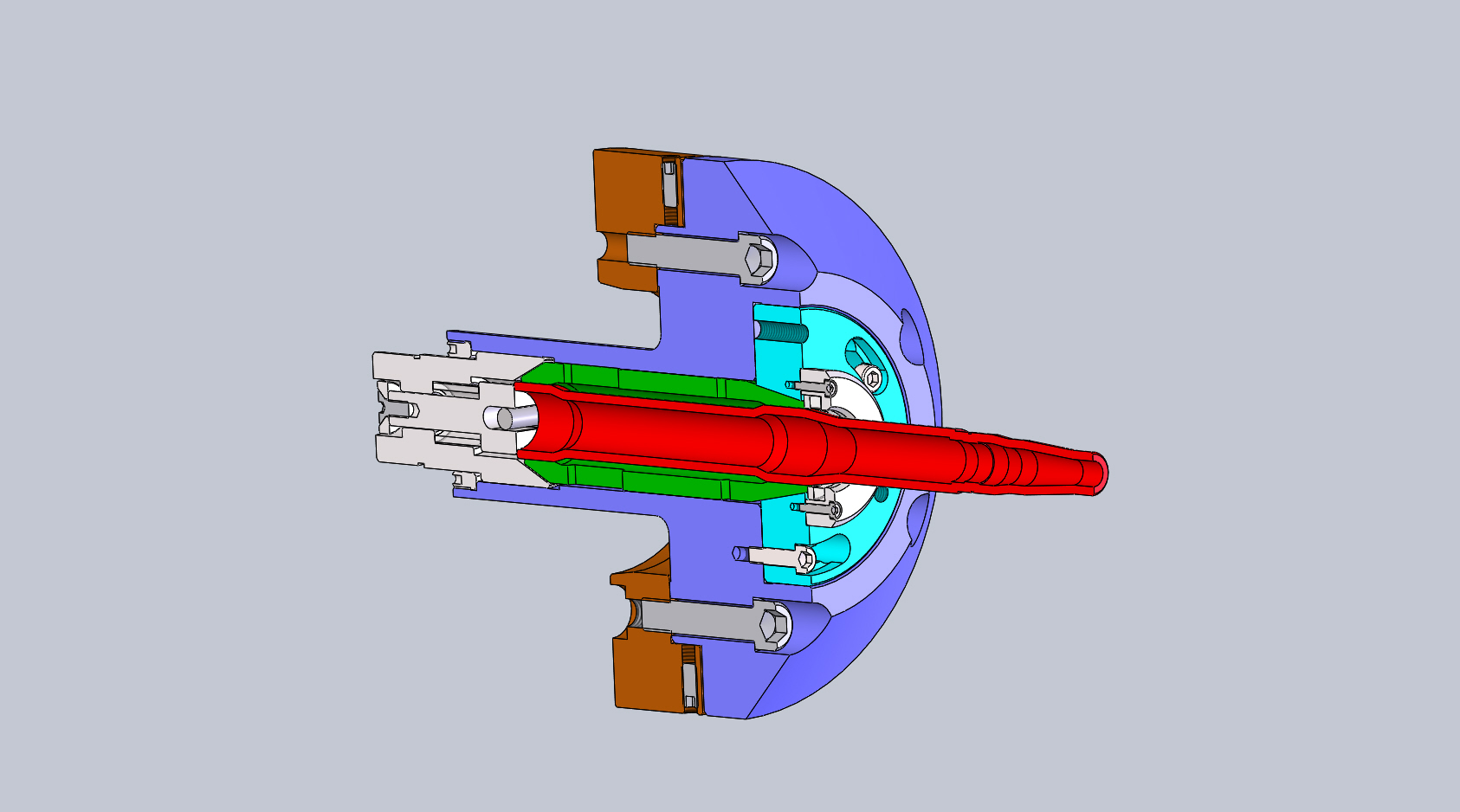

260-028-eb1400-assy

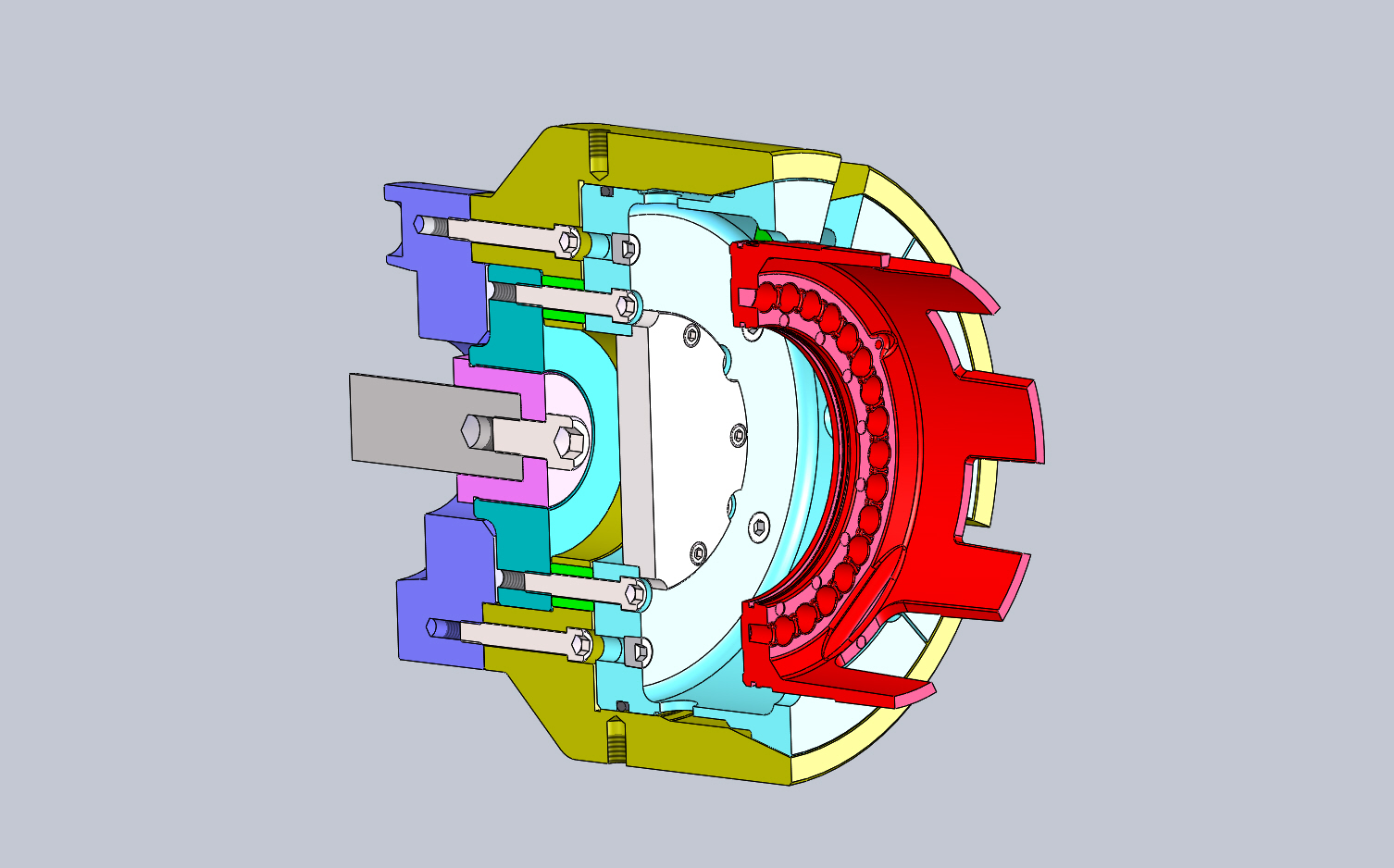

Collet Custom:

Custom size and style of mandrels required gripping on the inside diameter of the workpiece and positively locate against a workstop. Mandrels can be mounted on any type of lathe or machining centers.

260-198mm-eb1766-assy

Reach out to us with a phone call when you have any questions about our flex-ring mandrels. We offer custom manufacturing products for all of our clients nationwide.
